The Ambassador-class USS Enterprise-C was the third major Federation starship studio model to be introduced on Star Trek: The Next Generation, following the Galaxy-class USS Enterprise-D and the kitbashed Constellation-class in the form of the USS Stargazer. Though a significant design variation, utilizing The Next Generation stylizations, the design, established as an older one, was only to have a limited presence in the Star Trek franchise.

Design[]

USS Enterprise-C first Probert design

Probert's concept painting of the Ambassador-class

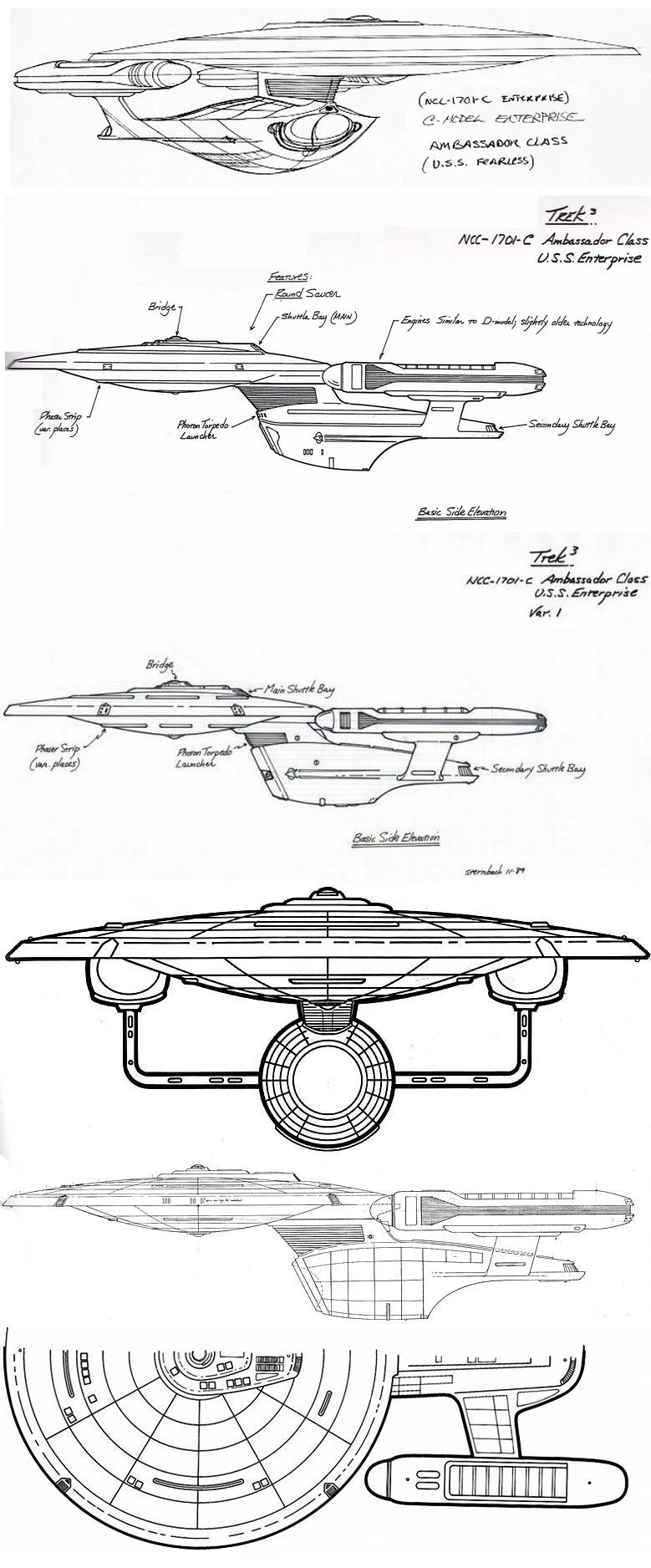

USS Enterprise-C Sternbach design sketches

Sternbach's modified design sketches of the Ambassador-class

The model was designed by Rick Sternbach, based on sketches as well as on a design concept painting produced by Andrew Probert for the first season of Star Trek: The Next Generation. The design was intended to suggest an intermediate step between the Excelsior-class and the Galaxy-class starships. A relief sculpture of Probert's design was placed in the observation lounge aboard the Enterprise-D. Unfortunately, the model was needed for "Yesterday's Enterprise" much sooner than the time it would take to fabricate the smoother lines of Probert's concept, requiring Sternbach's alterations which ended up on Greg Jein's final model. As Sternbach later remembered, elaborating in detail on his thought processes,

"The deadline for sketching and blueprinting the Ent-C was pretty normal in that I had a few days pre-production to sketch up the ship as first suggested in Andy Probert's color painting, get it approved as an intermediate shape between the Excelsior and the Galaxy classes, and then work up the blueprints. Greg Jein was given the miniature job, as we know. I suppose it took about three or four days to draft up the hull shape. The port elevation sketch was the first and, ultimately, the only sketch view of the Ambassador class Enterprise-C done for the TNG episode "Yesterday's Enterprise." Time constraints dictated that the blueprints and filming miniature be started as soon as possible, and the general look of the ship was quickly approved.

"The genesis of the design came from a small color painting done by Andy Probert back in the early preproduction for Season 1, plus a mental blending of the Excelsior/Enterprise-B and Galaxy class Enterprise-D. While Andy's color sketch showed an elliptical cross section for the engineering hull and an intended elliptical saucer (not clearly visible but confirmed by Andy), the Enterprise-C would require some simplifications if it were to be constructed in time for filming. I began drawing up the blueprints with a circular saucer and a circular cross section for the engineering hull, knowing that they would make model maker Greg Jein's job markedly easier. Swinging compass arcs for the major saucer thickness changes and secondary hull bulkheads took much less time in the drafting stage than calculating ellipses, which is not impossible with pencil and tracing vellum (using something called the trammel method), just tedious. With the basic line work completed for a combined top/bottom view and a fore/aft view, all of the expected details on a Starfleet ship were added. Shield grid lines, phaser strips, lifeboat hatches, reaction control thrusters, running lights, engineering access hatches, and windows populated the surface.

"Understanding Greg Jein's knowledge of starship modeling, I felt comfortable penciling in a single "wedge" of saucer details and then instructing him to repeat the wedge around as necessary, rather than draw every single component. Did anything get left off the blueprints? Torpedo launchers, I think, and maybe a tractor beam emitter or two. Why Greg didn't catch that, I'll never know.

"Once in his hands, Greg added a lot more surface texture in the form of more shield grid lines, as well as a unique paint scheme. The front view was inked (inked?!) to become part of the bridge displays on the Enterprise-C. If you didn't know before, black line art was typically shot on high-contrast negative film and then colored from behind with gels, mounted to light gray smoked plexiglas, and backlit. Okay, you knew that. Today, of course, it's all Adobe Illustrator and Corel Draw and a bunch of other image apps printed out to backlit inkjet film. Anyhow, most of the status displays and engineering cross section diagrams were originally done with black technical pen and Xerox pasteup and thin black crepe tape. Half of a top view could be flopped and copied and pasted together to make a full top view, and incorporated into a control panel.

"One thing you'll notice from the front view is that the nacelles don't peek over the top of the saucer, but rather "look under" the saucer to allow the Bussard collectors to work. Same goes for Voyager and the Enterprise-D. I may have doodled the Ambassador class pylons reaching way up over the saucer but discarded the idea; some shapes just don't feel right, so they get reworked. The nacelles themselves are deliberately a bit oversized, as if Starfleet was experimenting with a new warp coil that was perfected later in the Galaxy class.

"The Enterprise-C was certainly a fun ship to work on despite the short time frame, and to see it come out as a couple of different model kits was an added bonus." [1](X)

USS Pegasus concept art

The unrealized version of the USS Pegasus

A design variant based off that of the Ambassador-class was considered for use in the seventh season episode "The Pegasus" as the USS Pegasus, apparently as an alternative for the intended reuse of the Oberth-class model. (Star Trek: The Next Generation Companion (2nd ed., p. 278)) Sternbach reasoned that it would allow Greg Jein to reuse the molds he had already at hand for quick construction, as indicated in the item description when he sold his original design sketch on 1 December 2009 through his eBay webshop,

"This was an 11" × 17" semi-original pen and ink and pasteup drawing for a concept for making the U.S.S. Pegasus out of Enterprise-C physical model parts, instead of re-using the model of the U.S.S. Oberth science ship. Drawing is signed in the lower right. [2]

Still, even this cost-saving measure turned out to be too costly, and the already visual effects heavy episode subsequently went with the easier to handle ready-at-hand Oberth-class model after all. Additionally, Sternbach's had also produced a detailed master systems display graphic in ink of the design for use in the episode, which ended up unused. Further commenting he added, "I think the ink drawing assumed Ambassador parts, from what I recall of the general proportions. I don't recall if I did a new systems cutaway for the Oberth-Pegasus." [3]

Probert himself revisited(X) his original design in 2007 in preparation for a possible release of a model kit. [4] One of Sternbach's redesign sketches turned up at Propworx's The official STAR TREK prop and costume auction of 8 August 2010 as Lot 320 where it sold for US$480 (including buyers premium), being estimated at US$200-$400.

Physical studio models[]

USS Enterprise-C warp nacelle master under construction

Warp nacelle master under construction at Merriman's workshop

Time constraints also meant that the model was of less quality than normal, but in this particular case this was not necessary since the battle-damaged model was intended to appear only in wide shots on relatively low-resolution TV screens. In order to have the model ready in time Jein also needed the help of subcontractors Ed Miarecki, who constructed the secondary hull master, and David Merriman, Jr., who built the master for the nacelles.

Merriman, who had helped out Jein on previous occasions when the latter found himself in a time pinch (especially when it came to producing warp engines), later recalled,

"I've indicated that Paramount didn't give Greg much lead-time to produce the miniatures for the ST:TNG TV show, Case in point: the Enterprise-C job! The next call from Greg involved his need for another warp engine master for a new Starfleet craft, but he needed it in hand within ten days. Weeeee!... About this time Ellie [remark: Merriman's wife] and I had adopted the playful title of "Warp Engines R Us". Oh well! Better to be type cast and get the work than not to be appreciated for possessing special talents and to not get the work at all.

"The next day the plans arrived. One break presented itself as I studied the drawings: The 1701-C's warp engines were nearly circular in section, permitting me to lathe turn the master from wood and to carve, file and sand it to the final shape, streamlining our work a great deal.

"Turning the Sugar Pine piece on the wood lathe to the shape of the warp engine, I cut in two radial recessed areas forward. The portions of the radial recesses that had to be brought back to the height of the warp engines surfaces were built up with Bondo. Thin gauge plywood sheet barriers defined the borders of the recessed areas. I used a molder's gauge to assure symmetry of the cuts made into the wooden pattern - i.e. the left side was of the same contour as the right. Once roughed out the shape, the master was worked with sandpaper and primer to a smooth finish.

"With a big sigh of relief we sent the 1701-C warp engine master off, not expecting to hear from the West Coast for some time." (Sci-Fi & Fantasy Models, issue 30, p. 39)

Enterprise-C studio model battledamage applied by Greg Jein

Jein applying battle damage on the first studio model

The battle damage on the Enterprise-C was primarily painted on, but Jein also used sparkling fireworks, held close to the model, to apply smudges and scorching, "To simulate the damage on the Enterprise-C, we used a lot of leftover pyro that we had from the Fourth of July, like firecrackers and smoke pots. We actually scorched the surface of the ship rather than painted on it." (Star Trek: The Next Generation 365, p. 138). The model came in at 41.19×26 inches in length and was constructed out of glass fiber reinforced cast resin with styrene details. Both Jein's construction blueprints, as well as Sternbach's orthographic plans prepared for Jein, were upon completion of the model gifted to Gary Kerr, a personal friend of Jein, who used them to draw up his own set of blueprints for intended use in Michael Okuda's canceled Starship Enterprise reference book project. [5](X)

The second filming model[]

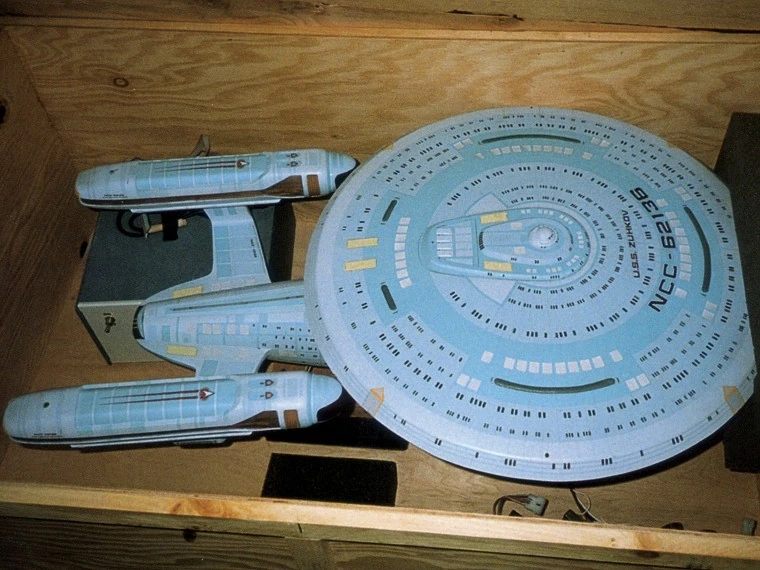

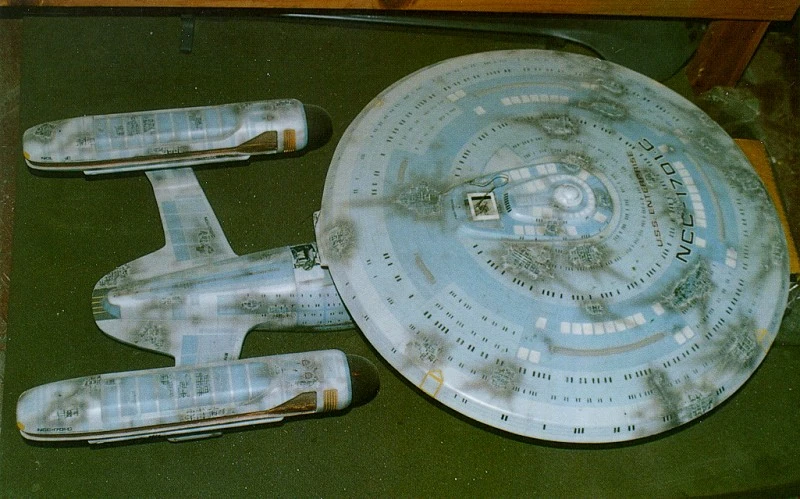

USS Enterprise-C studio model USS Zhukov studio model
The original studio model as the USS Enterprise-C...
...and the second studio model as the USS Zhukov

The next appearance of the Ambassador-class was as the USS Zhukov (misspelled and mislabeled as "USS Zuhkov", NCC-62136) in "Data's Day" . Here it was featured in a slightly different configuration. The saucer section's connection to the engineering hull was shifted slightly aft, with the nacelle pylon assembly moved a corresponding distance in the same direction. Cowlings were added around the Bussard collectors, making them appear closer to that of the Galaxy-class. The lower sensor dome became more elaborate and closer in appearance to the Excelsior-class and the deflector dish was modified. Finally, the width of the shuttlebay was increased and a second facility resembling that on the Excelsior-class engineering hull was mounted directly underneath the original one. Graphics were upgraded with the Starfleet insignia of the 2360s. Apart from these changes the layout and the number (from sixteen to twenty) of lifeboat hatches on the bridge module was changed.

All these changes perplexed Sternbach, who once commented, "Once the drawings and/or blueprints left my desk, I didn't have a whole lot of control over what happened to the models, as evidenced by the weirdness with the Enterprise-C and ships like the Romulan scout and Talerian (Tarelian?) cruiser." [6](X) The radical redesign has led to considerable debate over the years on whether the original model was modified or that a second model was built, [7] with Sternbach not being the only former production staffer led astray as several of his then colleagues actually also proceeded from the former. [8](X) It turned out however, that Greg Jein decided after filming of "Yesterday's Enterprise", to keep the original model intact as the USS Enterprise-C with battle damage, and replace it with a second model with the different configuration for its later class representations, starting with the USS Zhukov. Just like he had done a year earlier with the production copy of his original D'deridex-class model, Jein made use of the molds he already had created for the Enterprise-C, to cast the parts for the second model. [9]

Ambassador class model with damaged and repaired port nacelle strut

The second model with damaged (t) and repaired (b) port nacelle strut

The class later appeared in "Redemption II" as the USS Excalibur in stock footage taken from both "Yesterday's Enterprise" and "Data's Day", therefore appearing in both its original and modified form, again just like the two D'deridex class models would be a short while later in "Face Of The Enemy". Though having been labeled "Excalibur NCC-26517" in Mike Okuda's art department, there is no evidence that new footage of the model was actually shot for its appearance as such in the episode. It subsequently made its final live-action appearance in "Emissary" as the USS Yamaguchi, this time in newly shot footage. After what turned out to be its final production use, the model was briefly considered to make an additional appearance in Star Trek Generations. When the model was residing at Okuda's art department for evaluation to that end, art department staffer Doug Drexler took photographs of the model at that particular point in time which showed damage to the port nacelle pylon connection, conceivably incurred after its final production use. Drexler also took photos of the repaired model, showing that the port nacelle strut had been cut, thereby lowering the port nacelle below the saucer plane. This however, resulted in a disturbed symmetry of the model's warp engine array. [10](X) Its use in the film never coming to pass, the studio model still bore the markings of both the Excalibur and Yamaguchi at the time of its definitive retirement. [11](X) Established as an older design in canon, no CGI model for production purposes was ever created for the class.

Post-production use[]

After the second model was no longer deemed suitable enough for an appearance in a live-action production, it was shortly released by the studio for public relations purposes, slated to go on tour in the European Star Trek: The Exhibition traveling exhibition as replacement for the four-foot Galaxy-class studio model, which had been pulled from the opening leg of tour as it was unexpectedly needed for its final production use as the USS Venture. Upon arrival at the second, May-September 1995 Mosney Holiday Village, Dublin, Ireland leg of the tour however, it was discovered that the Ambassador-class model had been damaged in transit with substantial damage to the internal lighting, the saucer and, again, the nacelle pylons. [12] It was sent back to the studio, where it was quickly repaired, returning in time to be displayed in the third October 1995-March 1996 Science Museum, London, UK, leg of the tour, where it was photographed by Mike Trice for William S. McCullars' blog. [13](X) The fragile model was afterwards retired from the tour though, as it did not appear in the later legs of the tour. It was the one and only time the model has been on tour before it was auctioned off in 2006.

Ambassador class studio model Ambassador class studio model at Christies
The second model crated up for auction...
...and on view at Christie's, London

The studio model was featured in the documentary Star Trek: Beyond the Final Frontier due to its appearance in Christie's 40 Years of Star Trek: The Collection auction. The model, now with the starboard nacelle strut cut as well in order to restore the symmetry of the model's warp engine array (it had not been for its appearance in the Exhibition tour), was listed as Lot 694 and estimated at US$8,000-$12,000, selling on 7 October 2006 with a winning bid of US$40,000 ($48,000 including buyer's premium) to Adrian Hancock, the same British collector who also acquired the Intrepid-class, and the D'deridex-class studio models. [14](X) Prior to its sale, the model was on pre-auction views at Christie's London-based auction house from 3 August through 8 August, and subsequently at their New York City-based auction house from 29 September through 4 October, 2006. [15]

Ambassador class model presented for 2015 auction

The powered-up second model presented for its 2015 auction

After the death of Hancock though, his family decided to resell the model as part of their gradual liquidation of "The Adrian Hancock Collection", the family's science fiction memorabilia holdings, (Live Auction of Film & Television Artifacts, 16 October 2014 auction catalog, p. 186), offering it up as Lot 344 at the 23 September 2015 "Entertainment Memorabilia Auction" of Prop Store of London, estimated at UK£40-60,000, [16] [17] and where it sold for UK£27,500 (without buyer's premium) [18] Just like it had for Christie's, the model had gone on a pre-sale tour for the general public, appearing on display at several British summer ComicCons. [19]

Seven years later, the model turned up again at the same auction house in its November 2022 "Entertainment Memorabilia Live Auction (London)" as Lot #349 with an estimate of UK£50-80,000, apparently not selling on its slated 3 November auction date, [20] but eventually sold two weeks later on 25 November 2022 in a post-auction off-the-books sale after all. [21] The model became featured in a pre-auction video posted on the YouTube "Tested" channel from former MythBusters host, Adam Savage. [22] In it, Prop Store's curator Stephen Lane confirmed that it was indeed the second model Jein built and that it had been mistaken for the modified original one – even by first time auctioneer Christie's back in 2006, [23] as it was explicitly marked as the Enterprise-C when it was crated up at the time by the Paramount warehouse. [24]

The original Enterprise-C model, complete with battle damage and all, turned out to be still in existence as such, [25] and had initially been in the possession of noted American collector Adam Schneider, who conceded this on the "TrekBBS" blog under his online persona of "Search4". In effect, it was he who informed Prop Store about the two-model-issue when the model went up for sale at that auction house the first time – though the info came then too late to have it incorporated in the contemporary auction descriptions. [26] As he had done before with several of his other prior studio model acquisitions, – either by auction or private transaction – Schneider solicited the help of former Star Trek studio model and prop maker Ed Miarecki for the restoration of his acquisition around the mid-2010s, reacquainting the latter with the model he helped co-construct a quarter of a century earlier. (Star Trek: The Official Starships Collection, issue 156, p. 13) Schneider later decided to sell his model to a fellow collector. Unlike its sibling however, the original model has been hidden from the public eye ever since its appearance in "Yesterday's Enterprise", though Schneider has in April 2020 made pictures of his former possession available to the "TrekBBS" web-blog, [27] (later reproduced on the Ex Astris Scientia website in July 2022 [28]), for reference purposes.

Display models[]

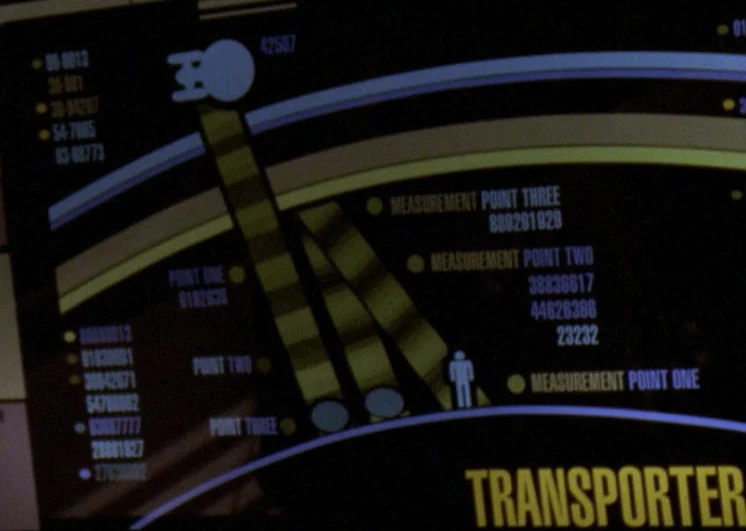

USS Potemkin, Ambassador class, LCARS

Ambassador display graphic

Aside from the frequent appearances of the Ambassador-class relief sculptures throughout the early seasons of Star Trek: The Next Generation and the display models in Star Trek: First Contact through Star Trek Nemesis, there were at least two other depictions of the Ambassador-class appearing on various LCARS displays, including a display shown in "Second Chances", and a classroom "Starship Chronology" display appearing during DS9 Season 2.

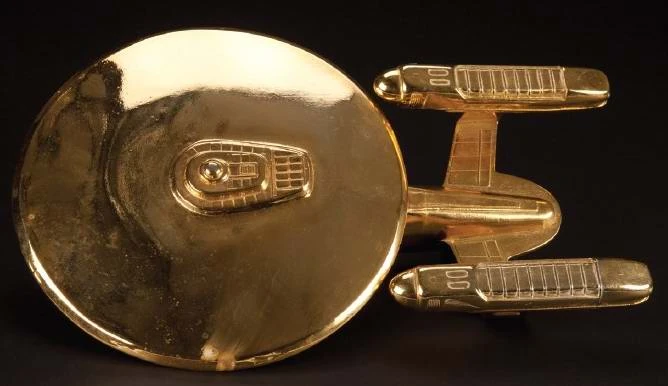

The display model in Star Trek: First Contact as one of the golden models in the display case in the observation lounge was a creation of John Eaves. "This was before eBay, so I went and scoured the hobby shops all the way from Los Angeles to PHX Arizona to find any and all kits of the Enterprises. What was available then was the Enterprise A, a TOS Enterprise that was too small so I opted to get the cutaway version that was substantially bigger, and the Ent. D. That left the "B", "C" and the new "E". For the "B" I grabbed one of the Playmates toy which was a good scale. For the "C" my friend Nelson tracked down a beautiful "Garage" kit that, too, was a good scale. For the "E", I had just finished making a big 28 inch study model for the producers here in LA and for the model guys and gals up at ILM. It was almost too big, but there was no time to sculpt another one so it had to do. Herman asked for 3 of each ship because we were now going to have the smashing of the case scene. In the end, we wound up making 6 of the "D's" and about 6 or 7 of the "C's" because it was the one that all the glass would fall on top of.", Eaves remembers on his blog. [29] Molds were taken of the model and solid resin casts copies were made (since there were multiple takes of the scene). After smoothing out the surfaces, the models were gold electroplated at ArtCraft Plating. The models were subsequently smashed when the scene was filmed.

Enterprise-C golden display model

One of the golden models

For Star Trek: Insurrection there were again three models needed (though due to a script change they would not be used there), this time because there were three display cases and Eaves more or less repeated the procedure, this time using an AMT/Ertl model kit (No. 8001), solidifying the models by filling them up with resin. They were seen as display models in the observation lounge in Star Trek Nemesis. [30]

Eaves and the studio initially retained the models but most of them were later sold at various auctions; one was sold as Lot 17 with an estimate of US$800-$1,200 in Propworx' STAR TREK auction III on 24 March 2012 for US$550 ($677 including buyers premium); one sold as part of a complete set of six in the Profiles in History Hollywood Auction 44 on 15 May 2011 as Lot 1550 for US$11,000 (for the whole set); one sold as Lot 9435 in November 2008 in It's A Wrap! sale and auction for US$17,750; one sold as part of a complete set of six in Profile's The Star Trek Auction on 12 December 2001 as Lot 288, estimated at US$10,000-$12,000, again for the whole set, and another one has reportedly been sold in an on-line Sotheby's auction in October 2000. [31](X)

Derivative franchise use of CGI models[]

Star Trek Official Starships Collection Issue 46 Star Trek Official Starships Collection Special Issue USS Enterprise NCC-1701-C
Gidding's Ambassador-class model on the covers of the Official Starships Collection

Whereas no production CGI model was ever constructed for live-action purposes, some were for reproduction purposes in, by the franchise licensed Star Trek print publications.

The first time an Ambassador-class vessel showed up as CGI imagery in an officially licensed publication, was as the Enterprise-C on the center spread, "Fleet Museum", of the 2006 Star Trek: Ships of the Line calendar, reproduced in its corresponding book of the same year. Though the complete depiction was composed by former Foundation Imaging employee Sean Scott, the model of that particular ship was constructed by his former Foundation colleague Robert Bonchune. The latter revisited his build, and refined it for a far more featured representation in the 2010 reference book USS Enterprise Owners' Workshop Manual.

Later CGI builds were Dan Uyeno and Tobias Richter's versions, which were respectively featured on the February, and June spreads of the 2012 Ships of the Line calendar. Their versions differed from the "official" ship, as Uyeno incorporated more Excelsior-class elements into the design of his model [32](X), while Richter's model was based on Probert's original design. [33](X)

Star Trek Official Starships Collection Enterprise-C Probert Concept Special Issue cover

Probert's original design on the cover of the Official Starships Collection

A more recent CGI version of the Enterprise-C, was a new model Ed Giddings constructed for Eaglemoss Collections' Star Trek: The Official Starships Collection partwork project, managed by Ben Robinson. [34] It has not been clear why Robinson deemed Bonchune's version unsuitable for the project and commissioned a new one, especially considering the fact that Bonchune, as supervisor, was "on staff" at the publication. Nonetheless, when released, the accompanying display model based on Giddings' CGI construct, did spawn some fan criticism for not entirely representing the Enterprise-C accurately as it varied on the detail level from the actual filming model as seen in "Yesterday's Enterprise", among others in regard to the placement of the nacelles. Taking the criticism into account, Robinson had Giddings fine-tune his model for the later outing in the "XL" (extra large) side-collection of the partwork publication, the improvements carried over to its accompanying larger display model. [35]

Incidentally, Andrew Probert, not having seen his intended model kit come to fruition, saw his original design eventually realized in the 3D physical realm after all (beyond the featured relief sculpture, that is), when Eaglemoss released his design in their other "bonus issue" side-collection as well. The CGI model for this release, on which the display model was based, was Tobias Richter's model, previously used in Ships of the Line. For its release and publication in the Collection, the model was redressed as the Enterprise-C and re-rendered in Eaglemoss' software package of choice, LightWave 3D (from the Autodesk Maya software Richter is known to habitually use), by the publisher's other mainstay, Fabio Passaro. [36] Probert provided some additional annotations to his design intent in the accompanying magazine.
